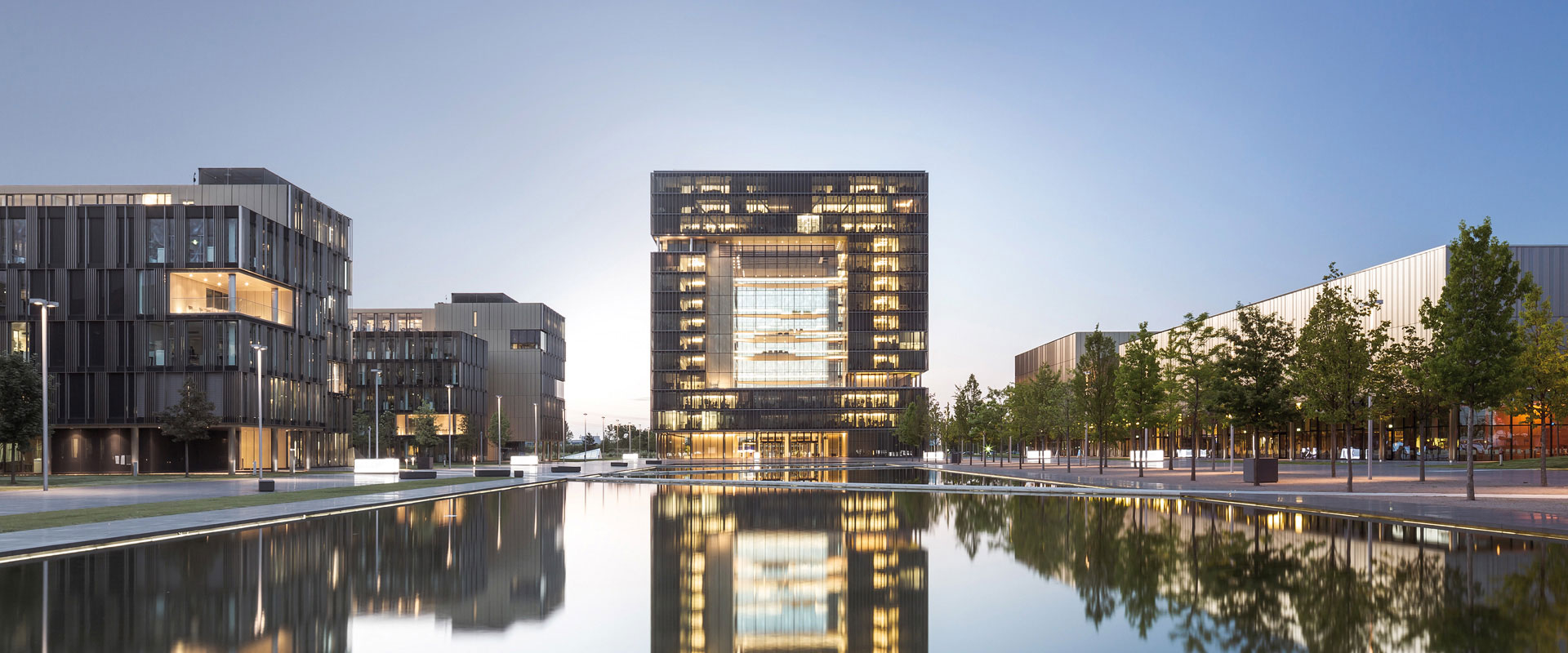

Quartier 1, Essen

With Quartier1, Thyssen Krupp has created a group headquarters that is as striking as it is technologically spectacular. In the construction of this gate-like, 50-meter high building, the company, along with Stuttgart engineering firm Werner Sobek, broke new technological ground. The distinctive glass wall is neither a standing nor a hanging construction, but is tensioned horizontally and vertically like a tennis racket.

Despite the large surface area of glass, the building has been awarded gold certification by the German Sustainable Building Council (DGNB e.V.), because annual energy use is less than 150 kilowatt hours per square meter. That is around half the average consumption for modern high-rise office complexes. Condair RS steam humidifiers ensure the correct atmospheric humidity.

Further information on the Condair RS

---

Flexible choice of water

A resistance heating system works independently of the conductivity of the humidifying water.
For this reason, Condair RS steam humidifiers are suitable for use both with demineralized water and drinking water.
When using demineralized water, maintenance is reduced to periodic function checks.

If steam humidifiers are to be operated with drinking water, then Condair RS steam humidifiers should
always be your first choice, because the patented limescale management system ensures a high degree
of reliability even when the water contains limestone.

A technical innovation that solves the limescale problem

Patented limescale management removes the separated minerals
from the steam cylinder during operation and automatically conveys them into the designated
limescale collecting vessel. Limescale deposits are thus continuously removed from the steam cylinder.

The pieces of limescale are collected in an
external limescale collecting vessel and can easily be emptied from there. Maintenance work is significantly reduced
and operational reliability is maximized. The patented limescale management system ensures
reduced maintenance times and long life of RS steam humidifiers.

Touch Controller for precise control

The Condair Touch Controller allows viewing of all unit and process data.
Operating data can be called up in real time, and there is a comprehensive data history. The electronic control system
allows the steam output to be varied continuously between 0 and 100%; this means
accurate control and management of the steam delivery rate.

Perfect connectivity

The RS series steam humidifier includes an interface for connection to current BMS systems
(Modbus and BACnet) as standard.

System layout
Resistive steam humidifier

PDF / Brochure: Condair RS resistance steam humidifier

---
