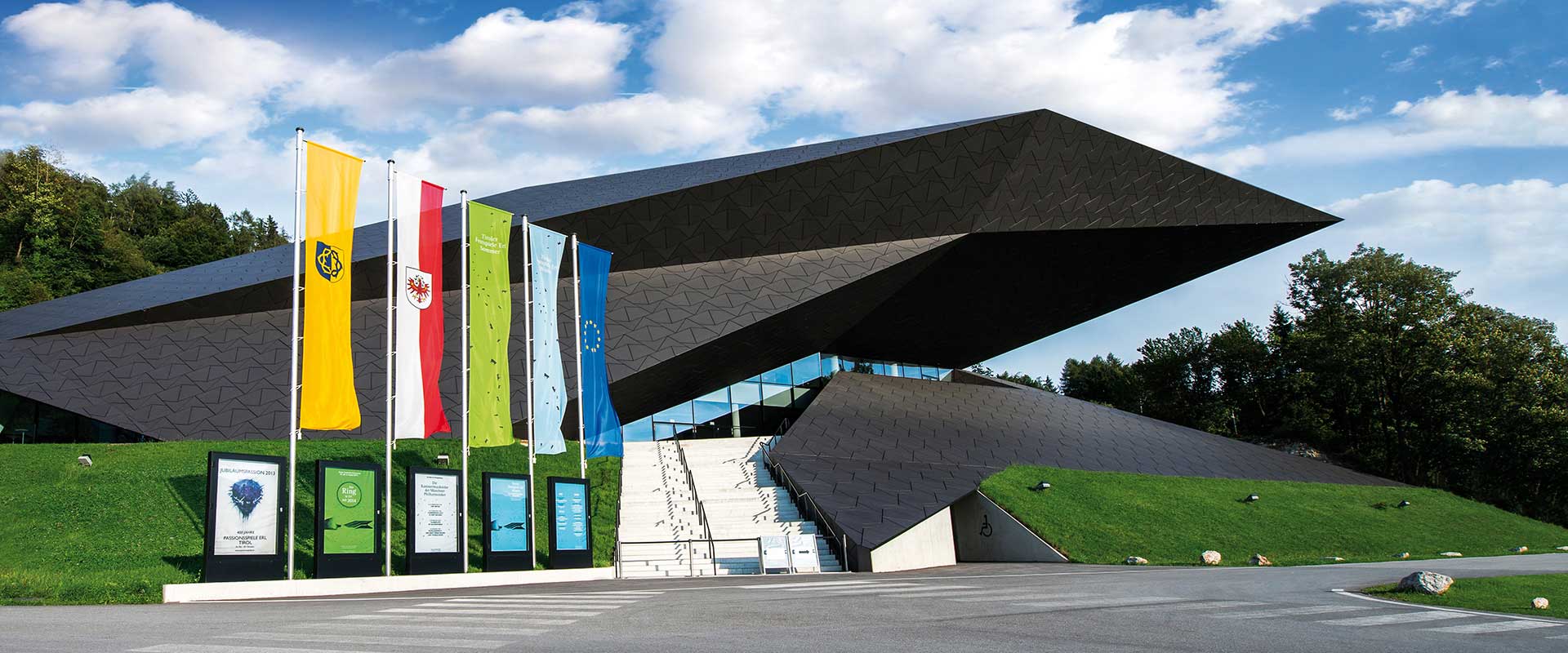

The Festspielhaus Erl was designed like a diamond unearthed from the mountain by the Viennese architects Elke Delugan-Meissl and Roman Delugan. The building's geometry also makes reference to the cliff formations behind it and the topography around it. Its entrance staircase and the glass facade of the foyer were designed to resemble a tectonic stratification with crevices lying in between.
During the day, this configuration reveals a clear path into the building's interior and at nighttime the lighting of this "artificial crevice" creates an exhilarating entrance to the foyer of the Festspielhaus.
The building has a total usable surface area of 7,000 square meters, more than 862 seats, the world's largest orchestra pit at 160 square meters, and a comfortable indoor humidity thanks to Condair steam humidifiers.
Resistive steam humidifier
The Condair RS steam humidifiers boast patented limescale management which prevents permanent deposition of limescale on heater rods. Limestone crusts are successively detached and removed from the steam cylinder into the limescale collection vessel. Limestone management ensures extremely short waiting times and a long life.
The innovative control system fitted with a touch display ensures outstanding transparency of function and precise steam delivery. The units are the result of decades of experience and they define the state of the art in modern steam humidification.
Further information on the Condair RS
Flexible choice of water
A resistance heating system works independently of the conductivity of the humidifying water.
For this reason, Condair RS steam humidifiers are suitable for use both with demineralized water and drinking water.
When using demineralized water, maintenance is reduced to periodic function checks.
If steam humidifiers are to be operated with drinking water, then Condair RS steam humidifiers should
always be your first choice, because the patented limescale management system ensures a high degree
of reliability even when the water contains limestone.
A technical innovation that solves the limescale problem
Patented limescale management removes the separated minerals
from the steam cylinder during operation and automatically conveys them into the designated
limescale collecting vessel.
Limescale deposits are thus continuously removed from the steam cylinder.
The pieces of limescale are collected in an
external limescale collecting vessel and can easily be emptied from there. Maintenance work is significantly reduced
and operational reliability is maximized. The patented limescale management system ensures
reduced maintenance times and long life of RS steam humidifiers.
Touch Controller for precise control
The Condair Touch Controller allows viewing of all unit and process data.
Operating data can be called up in real time, and there is a comprehensive data history. The electronic control system
allows the steam output to be varied continuously between 0 and 100%; this means
accurate control and management of the steam delivery rate.
The RS series steam humidifier includes an interface for connection to current BMS systems
(Modbus and BACnet) as standard.
Resistive steam humidifier
PDF / Brochure: Condair RS resistance steam humidifier
